CellGuard Wireless Battery Monitoring System

CELLGUARD

Wireless Battery Monitoring System

Critical power-backup systems must be ready to go the instant they are needed. Midtronics designed the CELLGUARD Wireless Battery Monitoring System to ensure that batteries critical to stationary battery systems will be able to meet power demands at all times. The CELLGUARD SYSTEM provides full conductance, battery temperature, intercell connection integrity, voltage monitoring and more for comprehensive battery and system state of health analysis.

The CELLGUARD SYSTEM combines the latest wireless communications technology with patented, field-proven battery conductance analysis for the most thorough industrial battery health assessment in the stationary battery industry. Years of laboratory and field test data have proven that conductance provides a reliable indication of battery state of health and a correlation to battery capacity. The advantage of using conductance technology is the accuracy and efficiency it offers. Conductance can be used to detect cell defects, sulfation, dryout, shorts, and general degradationthat can cause the battery to fail. In addition, this passive method is safe and non-invasive,eliminating large discharges of energy from the battery. Not a "one size fits all" measurement, extensive research has been conducted to ensure effectiveness on a wide range of stationary power batteries in numerous applications.

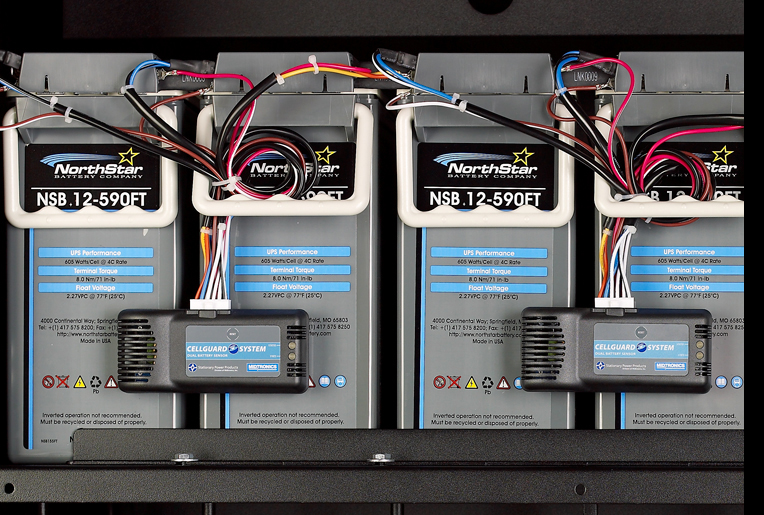

CELLGUARD utilizes battery sensors to effectively monitor and analyze battery performance. CELLGUARD's battery monitoring sensors remain attached to the battery during its service life and continuously assess the health and power status of the battery. Combining conductance with measurements of voltage and temperature, they give a continuous record of a battery in service.

The CELLGUARD Wireless Battery Monitoring System is designed for simple expansion and worldwide accessibility. Advanced notification of battery problems are conveniently available via email or text message. Wireless communication architecture ensures proper installation, easy operation, & low maintenance costs. Economical total cost of ownership comes from reduced installation cost, hardware price, and system maintenance. Efficient for standby power backup applications: UPS Battery Monitoring, Telecommunications Power, Power & Utility T&D and CATV / Broadband.

Features

Continuous 24/7 online battery monitoring for system integrity assurance
Intercell connection integrity battery monitoring ensures system effectiveness
Applies test signal to an individual cell or monoblock for high resolution of battery backup system state of health
Web enabled communications for remote surveillance
Full monitoring of string charge and discharge current, and discharge performance recording
Standby battery industry choice conductance technology is the accepted standard for battery testing

Midtronics battery monitors, sensors and battery data management software makes compliance with the new NERC standard PRC-005-2 quick and easy.

Specifications

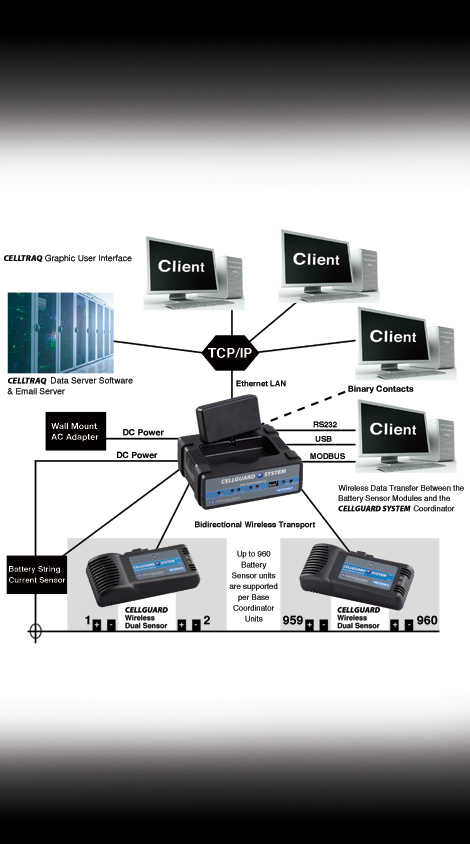

Communications Interfaces: Ethernet 10 Mbps, RS232 or serial USB ( @ 57.6 kbps), 802.15.4 compliant RF transport @ 2.4, GHz Radio Band

Temperature: Operating Temperature( 0 C to +65 C), Storage Temperature( -10 C to +80 C)

Protection: Sensor (2 V & 12 V), Test load and power paths are fused, PolySwitch protection for high heat detection

Power Requirements: Base Coordinator Unit Power, Powered by 9 V DC wall plug adaptor or powered from VTC (optional), VTC Unit Power, Powered from the battery (< 60 mA), 2 V Sensor Power, Powered from the battery under surveillance, 12 V Sensor Power, Powered from the battery, Input Range 42 to 600 Volts DC

String Current Measurement: Float State 300 milli-Amps to 10 Amps, Charge State 10 to 200 Amps, Discharge State 10 to 200 Amps

Physical Dimensions: Base Coordinator Unit under surveillance, Conductance Measurement Range 2V Sensor:100 to 15,000 Siemens, 12V Sensor:100 to 4000 Siemens

Strap Resistance Measurement: 2 micro Ohms minimum

Test Current: 2V & 12V Sensors, Test current is approximately 5 Amps RMS

Voltage Measuring Characteristics: 2V Sensor Voltage range: 1.75 V to 2.5 V, Resolution: +/- 10 mV
12V Sensor Voltage range: 8.7 V to 15.7 V, Resolution: +/- 20 milli Volts

Sensor Negative Battery Post: Temperature Reading, Temperature Range( 0 C to +65 C), Measurement Accuracy(+/- 2 C)

String Voltage Measurement: 5.08 in x 5.25 in x 2.25 in, 12.9 cm x 13.3 cm x 5.7 cm
VTC String Monitor: 5.08 in x 5.25 in x 2.25 in, 12.9 cm x 13.3 cm x 5.7 cm
2 V & 12 V Sensor: 4.45 in x 3.15 in x 1.5 in, 11.3 cm x 8 cm x 3.8 cm

Application Markets: UPS Battery Monitoring, Telecommunications Power, CATV/Broadband, Power Utility T&D
