CELLTRAQ

Midtronics CELLTRAQ Battery Data Management System was developed to address the changing needs of Stationary back-up battery users. As power reliability becomes more and more critical each day,battery management also grows in complexity and importance. CELLTRAQ simplifies the process of battery management, allowing for storage, analysis and reporting of battery information from a centralized location. CELLTRAQ provides centralized data storage, data access and management from any web access point with system-derived notification of battery faults via e-mail and text message. Measurements are captured, recorded and time-stamped at each occurrence for effective battery life history reporting and analysis. CELLTRAQ includes suggested corrective action for the technician and a graphical representation of battery system trends for rapid identification of potential future faults. CELLTRAQ allows for simplification of the monitoring process and analysis of battery assets by qualified and experienced personnel. Data is collected in the field and transmitted to a central location for review and analysis. CELLTRAQ offers efficient process management, including scheduled battery replacement budget.

Features:

• Server based architecture
• Manages battery test and monitoring data from a centralized database, with global access
• Streamlines review of information and safeguards historical data
• Instant indication of battery asset conditions throughout enterprise from one on-screen indicator
• Simple, familiar user-friendly set-up, navigation and reporting
• Multiple contact notification
• Centralized repository of battery information, including installation date, cost and performance specifications

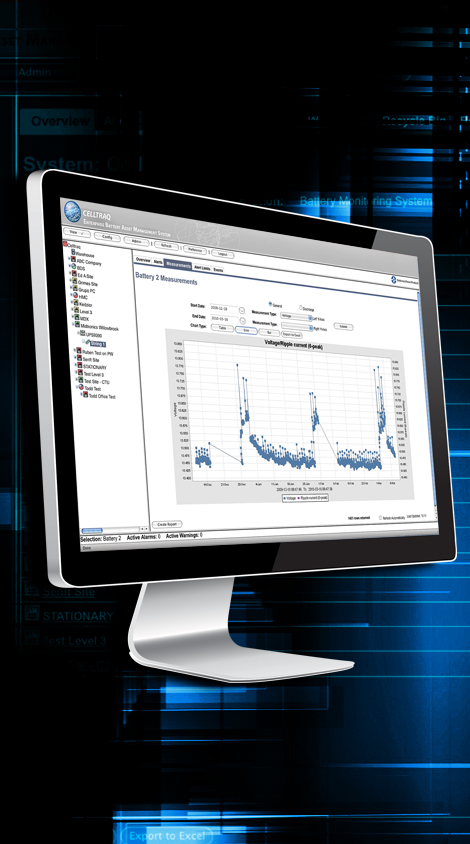

• Displays and produces formatted reports for key battery performance parameters/measures in tabular or graphical format

Midtronics battery testers, analyzers, monitors, sensors and data management solutions make compliance with the new NERC standard PRC-005-2 quick and easy.

Specifications

Windows Operating System

Tomcat Web Server:Tomcat: 2G RAM or above (4G is recommended), CPU: 2.6G or above

SQL Server 2000/2005 Database: Database: 4G RAM or above (8G is recommended), CPU: 2.6G or above

Installation CD provides, in addition to the Server Application, Database, and SMTP Tester Interface: Installation Manual, JDBC-SQL Server Driver, Java Development Kit (JDK), Tomcat
