EXP-1000 HD
Expandable Electrical Diagnostic Platform Analyzer for Commercial/Fleet Vehicles
The EXP-1000HD was created specifically for the heavy-duty commercial/fleet market. Using new Dynamic Conductance Battery Testing Technology, and designed for maximum flexibility, this analyzer will quickly become your electrical diagnostic tool of choice. Specific features for commercial/fleet maintenance include battery pack testing, multiple battery routines for up to 6 batteries, special commercial battery algorithms, and application specific test parameters for system and cable drop testing.
- Designed For HD/Commercial Fleet Market
- Program Management Tools
- Dynamic Conductance Testing Technology
- DMM Functionality
- Advanced Electrical System Diagnosticss
- Enhanced Communications Capabilities
- Superior User Interface
- Expandable Platform
- Dynamic conductance with direct temperature and deep scan technology
EXP-1000 HD SELECTED FEATURES
- Incorporates temperature measurement with deep-scan technology to improve accuracy and decisiveness across a wider range of batteries
- Battery test routine designed for multiple-battery vehicles
- Pack-test up to 6 batteries in parallel without disconnecting
- Tests 12 & 24V starting & charging systems
- Displays voltage, measured CCA, battery, starting, & charging system condition
- Full digital multimeter capabilities w/scope and infrared temperature readings
- Cable-drop test simultaneously calculates the voltage drop across the positive and negative sides of any circuit and total circuit drop without running engine
- SD memory card allows for record keeping, data transfer, and updates
Battery Management Processes
Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:
Warranty Management
Service Diagnostics
Preventative Maintenance
Reliability Assured
Perform preventive maintenance testing in less than five minutes to reduce operating costs and increase the reliability of your fleet.
- More Functions and Expandability
- Full System Reporting
- Digital Signal Processing (DSP) Capability
APPLICATIONS
- 6 and 12 volt HD Commercial
- 12 and 24 volt charging system diagnostics
- Marine Battery (including AGM batteries)
- Automotive
SUPPORTED BATTERY TYPES
- Regular (flooded)
- AGM Spiral
- AGM
- Gel
BATTERY RATINGS
- CCA = 200 – 3000
- DIN = 100 – 1000
- EN = 100 – 3000
- IEC = 100 – 1000
- SAE = 100 – 3000
- JIS By JIS number
DIAGNOSTIC TECHNOLOGY
- Conductance Profiling
POWER REQUIREMENTS
-
6 non-rechargeable AA alkaline batteries
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
EXP–1000HD
- Heavy-duty battery and system analyzer with, 15’ battery test cable, DMM clamps and probes, carrying case, and stud adapters
EXP–1000HD KIT
- Heavy-duty battery and system analyzer with, 15’ battery test cable, IR printer, DMM clamps and
EXP–1000HD AMP
- Heavy-duty battery and system analyzer with, 15’ battery test cable, amp clamp, DMM clamps and probes, carrying case, and stud adapters
EXP–1000HD AMP KIT
- Heavy-duty battery and system analyzer with, 15’ battery test cable, IR printer, amp clamp, DMM clamps and probes, carrying case, and stud adapters

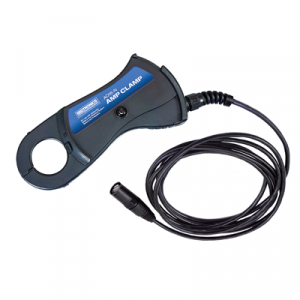

A018-N
- INDUCTIVE AMP CLAMP

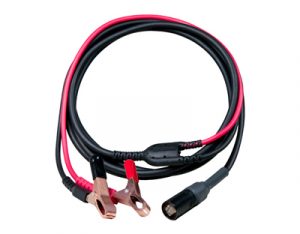

A028
- 10-FT DMM CABLE ASSEMBLY WITH CLAMPS

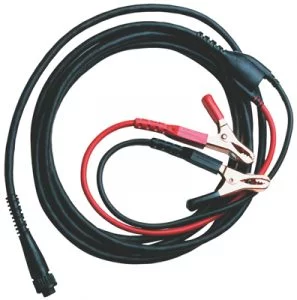

A083
- 10-FT REPLACEABLE CABLE

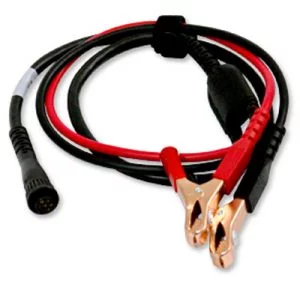

A084
- 4-FT REPLACEABLE CABLE

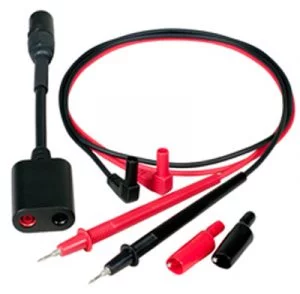

A126
- DMM ADAPTER & PROBE KIT

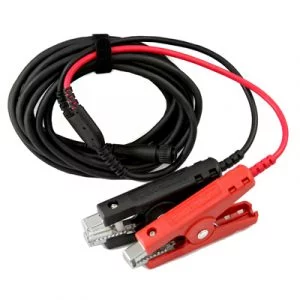

A139
- 10-FT REPLACEABLE CABLE WITH HEAVY-DUTY DURA

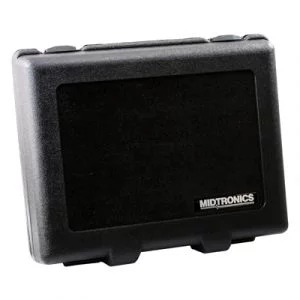

A106
- Hard Carrying Case

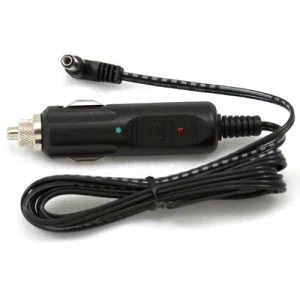

A025
- In-Vehicle Charge Cable for A087 Infrared Printer

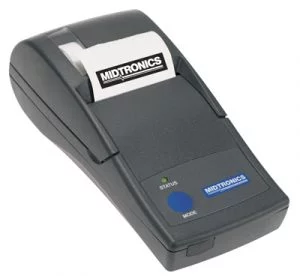

A087
- Infrared Printer

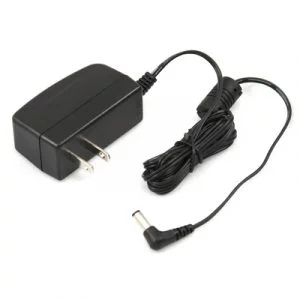

A090
- Charger Adapter for A087 Infrared Printer

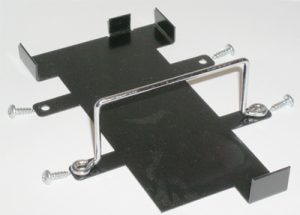

A098
- Shelf-Mount Printer Bracket for A087 Infrared Printer

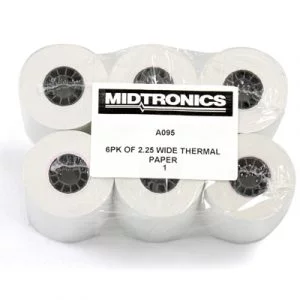

A095
- 6-Pack Thermal Printer Paper.
A033
- Lead Stud Adapter Set (2 Female; 2 Male)

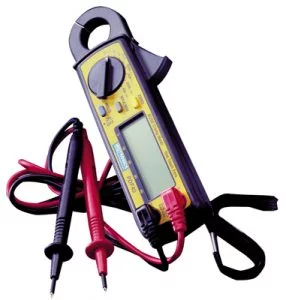

AMP-100
- Portable Multimeter
