GRX-3000

Battery Diagnostic Station

Fast, accurate and reliable, the GRX-3000 Battery Diagnostic Station can quickly and accurately determine if a battery is recoverable. Diagnostic charging continuously monitors and controls the charging process, stopping as soon as a battery can be returned to the customer or is determined to require replacement.

  • Identifies defective batteries with open welds and shorts rapidly
  • Charges recoverable batteries quickly and safely
  • Delivers better efficiency in the shop, clearer test results and more accurate preventative maintenance decisions
  • Eliminates guesswork and wasted time charging defective batteries

DOWNLOAD
GRX-3000
PRODUCT MANUALS

DOWNLOAD
GRX-3000
BROCHURES

PLAY VIDEOS

  • Midtronics: Diagnostic Charging 101

GRX-3000 SELECTED FEATURES

  • Easy to use with little or no training
  • Conditions batteries to reduce early life failures and improve customer service
  • 7-foot field-replaceable cables
  • Four LED lights enable easy monitoring of charge status, even at a distance
  • Charge countdown timer improves time management and customer communication
  • Optional integrated thermal printer enables you to print out reports for customers

Battery Management Processes

Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:

Primary Uses

Service Diagnostics

Warranty Management

Applications

    • Tests 6- and 12-volt batteries (including regular flooded and AGM batteries)





Dimensions

  • 18.0 in L x 17.0 in W x 9.7 in H(45.7 cm L x 43.2 cm W x 24.6 cm H)

Weight

  • 49.5 lbs

Operating Temperature

    • 32°F–120°F (0°C–49°C)

Rating Systems

    • DIN, EN, IEC, JIS, SAE

Battery Ranges

    • CCA, CA, MCA

Charging Voltage

    • Up to 17 volts, .1 resolution

Charging Current

    • 0–50 Amps, 1 Amp resolution

Compliance

    • ROHS, CUL

Supported Languages

    • English, Spanish, French-Canadian

Housing Material

    • Acid-resistant ABS plastic

Optional integrated printer

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

GRX-3000

  • Includes diagnostic charger with 7’ field-replaceable cables

GRX-3000 KIT

  • Includes diagnostic charger with integrated printer, 7’ field-replaceable cables, 6-pack thermal printer paper

GRX-3002P LATAM

  • Includes diagnostic charger with integrated printer, 7’ field-replaceable cables, 6-pack thermal printer paper; tool & printouts available in espanol

GRX-3003P KIT BRASIL

  • Includes diagnostic charger with integrated printer, 7’ field-replaceable cables, 6-pack thermal printer paper; tool & printout available in portugues-brasil

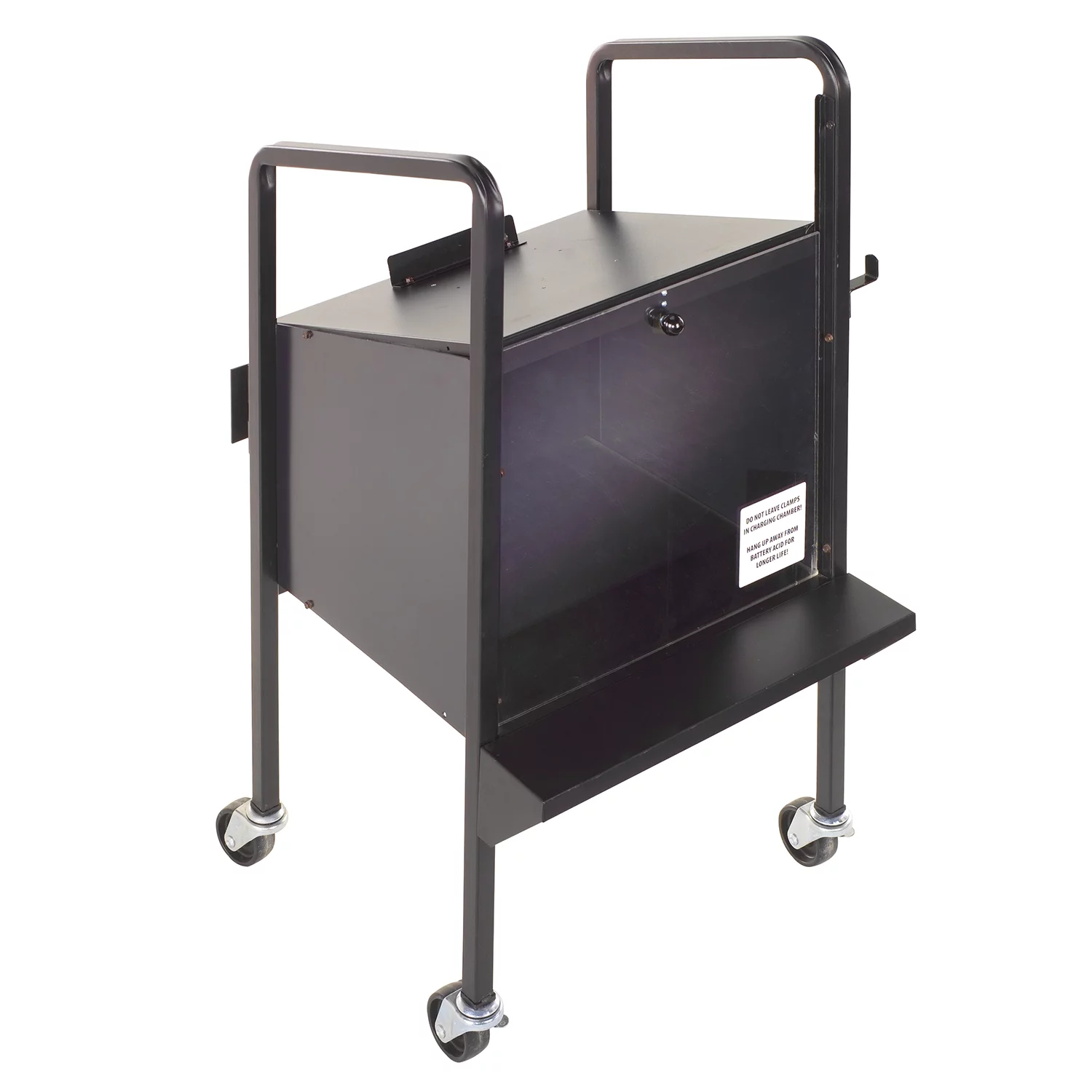

A067-GRX

  • Wheeled Cart (metal; battery containment shelf w/plexiglass door)

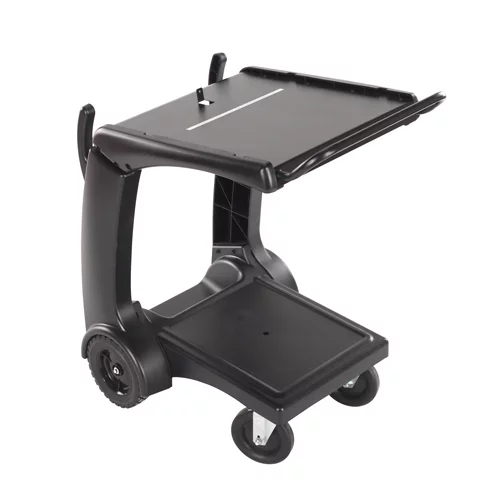

A268

  • Wheeled Cart (plastic; open lower shelf)

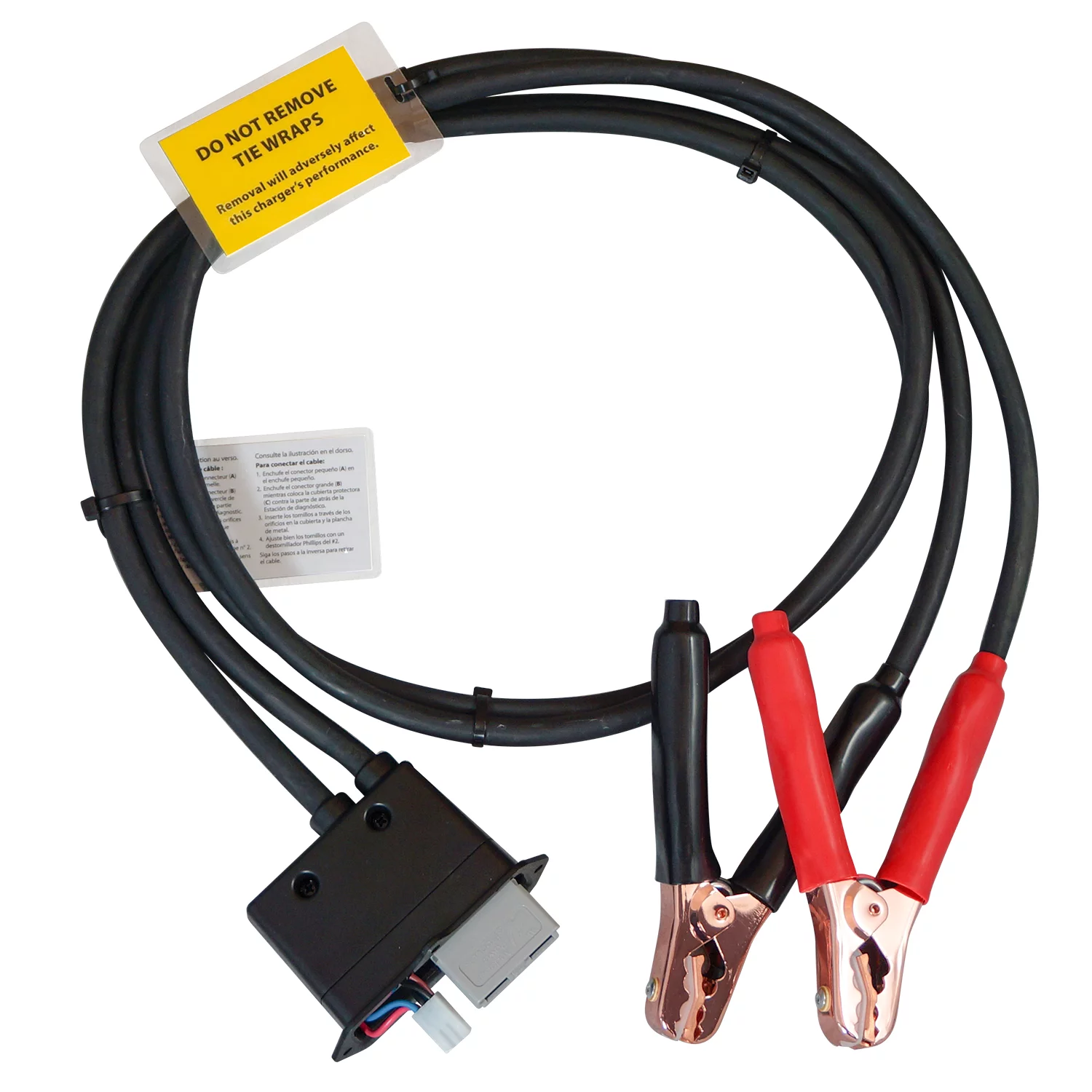

A0291

  • 7’ field-replaceable Cables

A095

  • 6 pack, Thermal Printer Paper* *Replacement paper rolls available at most office supply stores

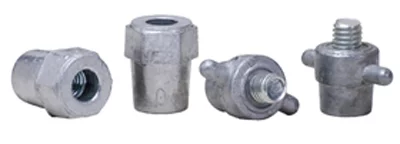

A033

  • Stud Adapter Set
