CPX-900

Battery & Electrical System Analyzer

CPX-900 Battery & Electrical System Analyzer offers advanced diagnostics in a handheld one-piece diagnostic tool. CPX-900 features Conductance Profiling™, a patented Midtronics technology that identifies batteries with low reserve capacity, a key capability to accurately diagnose the increasing electrical demands placed on modern vehicles.

  • Quickly and accurately diagnose a battery’s cranking and reserve capacity health
  • Reduced charge and retest results
  • Proven Midtronics quality – durable design features for heavy daily use
  • Support automated over-the-air software updates and data analytics

CPX-900 SELECTED FEATURES

  • Conductance Profiling
  • Infrared temperature sensor increases test accuracy
  • Field-replaceable cables
  • E-mail test results directly from the tool
  • Automated over-the-air software updates via optional dock
  • Ergonomic shape, size, and grip is easy to carry and hold
  • Optional integrated printer
  • Optional integrated barcode scanner for easy VIN capture

Battery Management Processes

Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:

Primary Uses

Secondary Uses

Preventative Maintenance

Vehicle Arrival Inspection

Pre-Delivery Inspection

Secondary Uses

Warranty Management

Service Diagnostics

KEY PRODUCT DIFFERENTIATOR

Conductance Profiling™

Combines our conductance algorithm with new proprietary technology to:

  • Identify batteries with poor reserve capacity that may start the car, but could fail to support other vehicle accessories
  • Ensures service readiness for emerging vehicle systems and batteries with new points of battery failure

Analytics and Communication

  • BMIS integration supports automated over-the-air software updates and analytical reporting
    • Capture and review battery testing data
    • Visibility into process compliance
    • E-mail results via built-in Wi-Fi

DOWNLOAD
CPX-900
PRODUCT MANUALS

DOWNLOAD
CPX-900
BROCHURES

APPLICATIONS

  • Automotive
  • Power Sports
  • Marine
  • Lawn & Garden

SUPPORTED BATTERY TYPES

  • 6- and 12-volt automotive batteries
    • Flooded Lead-Acid
    • AGM Spiral & Gel
    • Enhanced Flooded (EFB)
  • 12- and 24-volt charging system

BATTERY RATINGS

  • CCA
  • CA
  • MCA
  • DIN
  • SAE
  • IEC
  • EN
  • EN2

DIAGNOSTIC TECHNOLOGY

  • Conductance Profiling

COMMUNICATION

  • Wireless Communication
    • Class 2 Bluetooth
  • Wi-Fi Communication
    • 2.4 Ghz 802.11 b, g, n

POWER REQUIREMENTS

  • 6 ‘AA’ batteries

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

CPX-900

  • Includes tester with 4-ft battery test cables

CPX-900P

  • Includes tester with 4-ft battery test cables and integrated printer

CPX-900L

  • Includes tester with 10-ft battery test cables

CPX-900PL

  • Includes tester with 10-ft battery test cables and integrated printer

CPX-900PL BAR

  • Includes tester with 10-ft battery test cables, integrated printer, and bar code scanner

Note: Printer and Barcood Scanner options must be selected at time of purchase and cannot be added later

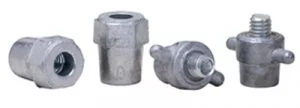

A033

  • Lead Stud Adapter Set (4)

A401

  • Replacement Paper Rolls – 10 Pack

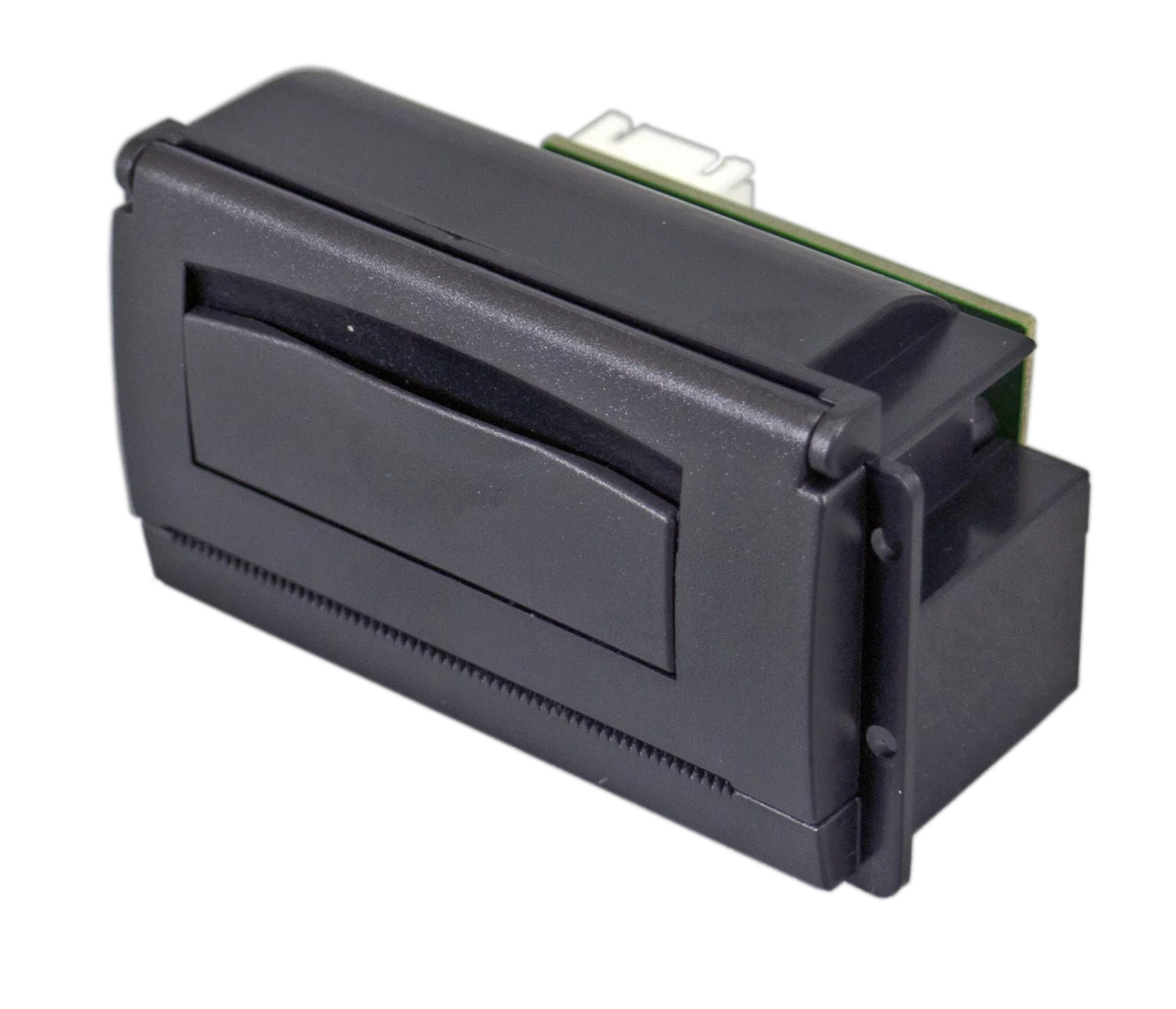

A423

  • Printer Module

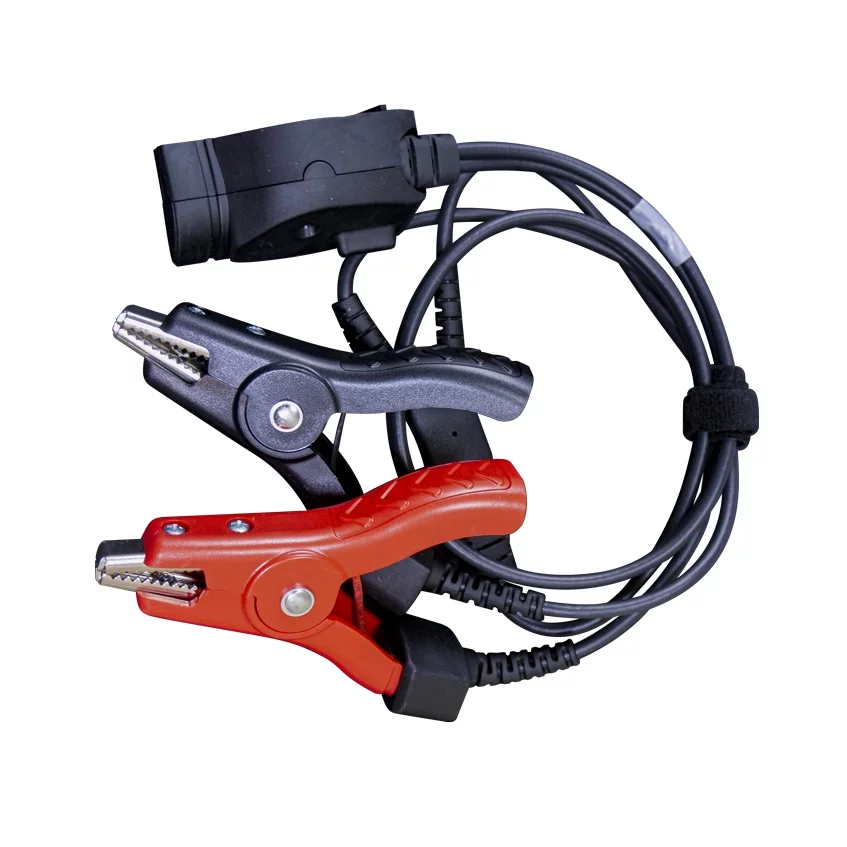

A683

  • Replacement Cable, 10-ft Power Sport

A684

  • Replacement Cable, 4-ft Power Sport

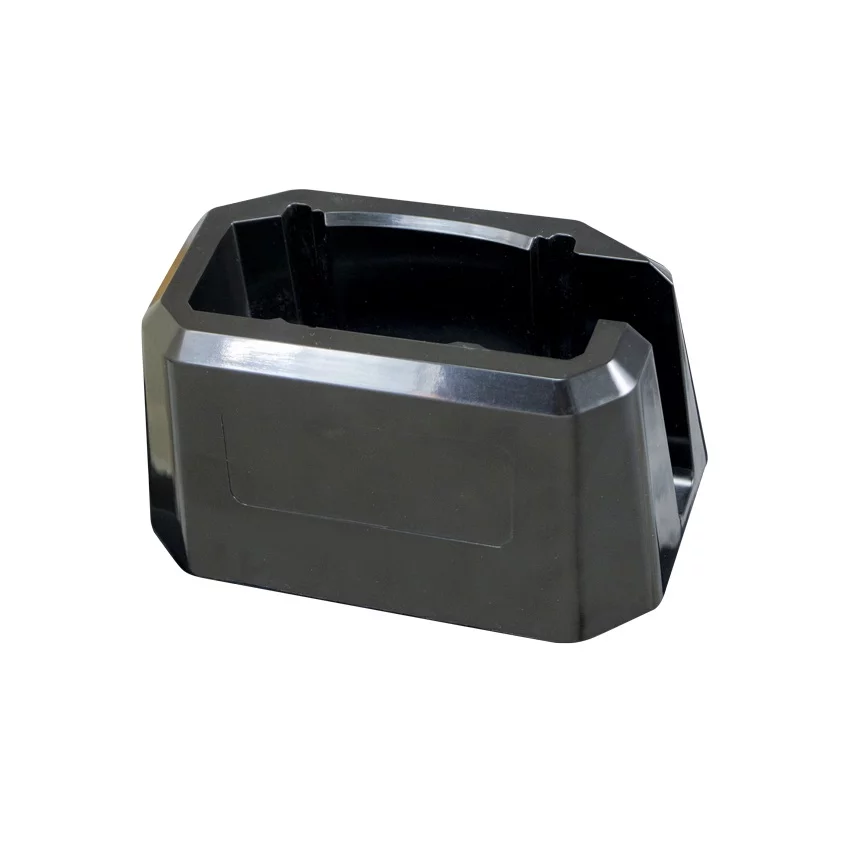

CPX-901

  • Docking Station
