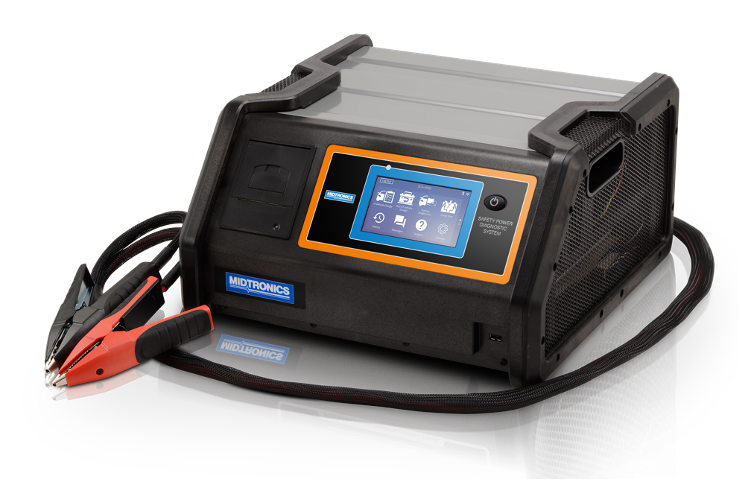

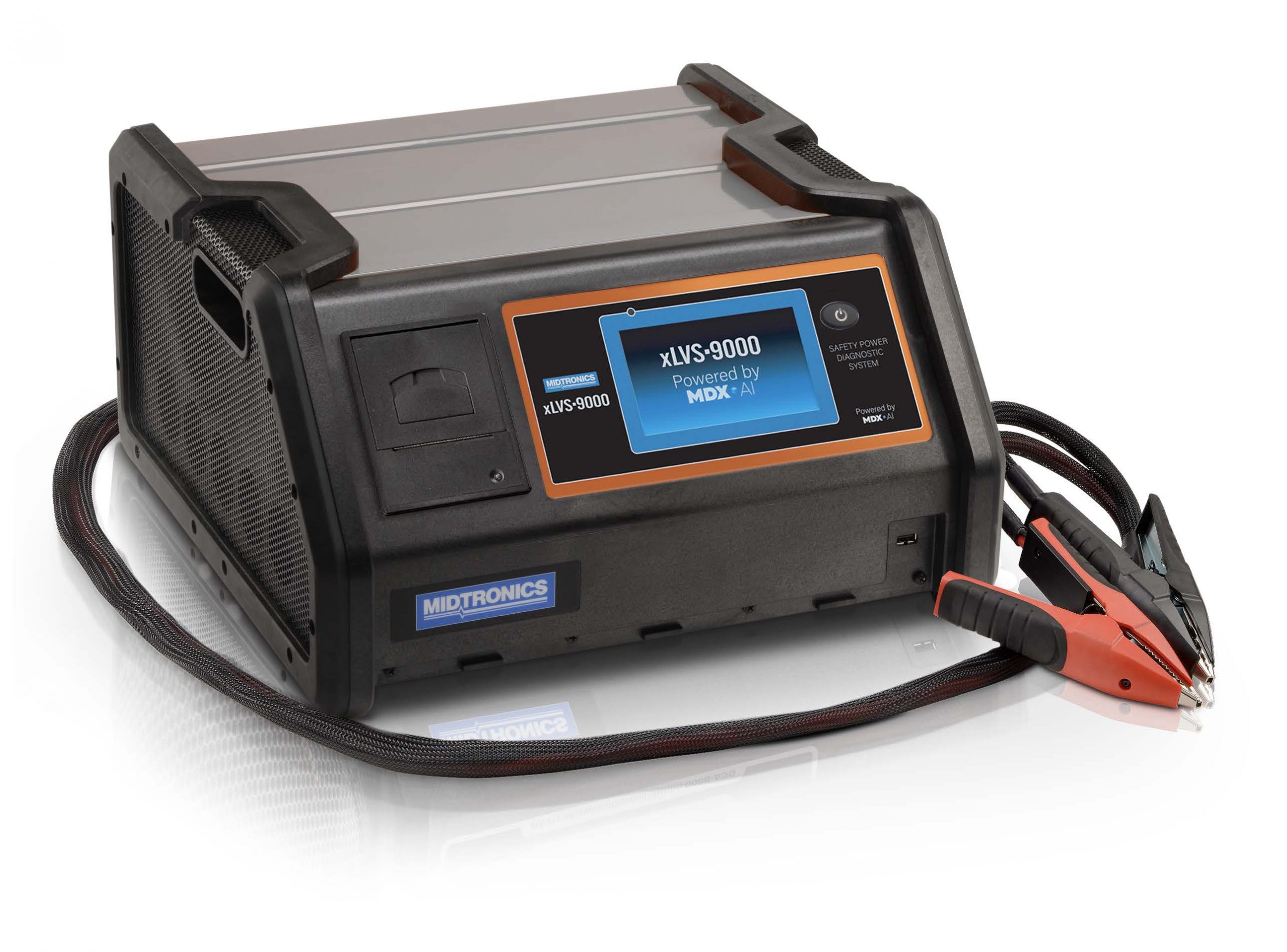

xLVS-9000

Electric Vehicle 12V Battery SafetyPower™ Diagnostic System

Featuring SafetyPower Diagnostics™ powered by MDX-AI™, xLVS-9000 ensures xEV service readiness for emerging vehicle systems, battery types, and new points of battery failure.

Delivers the most accurate EV 12V battery diagnostic technology
Unique diagnostics for SafetyPower™ Capacity, critical to support low-voltage systems in electric vehicles
Standard & Customizable – Pass/Fail thresholds enable all EV inspections strategies
Diagnoses most batteries in 2 minutes or less.
Charges as fast as possible through continuous battery monitoring.
Configurable minimum / maximum voltage output in manual charge mode: 12.0 – 14.4 VDC in 0.1 V increments

xLVS-9000 SELECTED FEATURES

500A load system quickly and accurately determines safety power capacity health
70-AMP power supply quickly and safely returns the battery back to appropriate state of charge
Dual Temperature Sensors
Field-replaceable Cables
Intuitive – Android user interface and 5” color touchscreen
Connected – WiFi capable for OTA updates and usage-data transmission with BMIS
Data Analytics – Supports BMIS Cloud integration (Battery Management Info System)
Scan & Go – 1D/2D barcode scanner for identification of vehicle/battery info and VIN capture (Optional)
Printer – for additional documentation of results (Optional)
Portable – mobile cart available (optional)

Battery Management Processes

Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:

Primary Uses

EV Safety Inspection

Warranty Management

Preventative Maintenance

Service Diagnostics

Secondary Uses

Pre-Delivery Inspection

Electric Vehicle Arrival Inspection

Lot Management

SafetyPower™ : 12V battery powers critical systems in electric vehicles

12V is the #1 reason for EV roadside events
12V Aux battery is used to operate all systems outside of propulsion, including safety systems
It must have healthy SafetyPower™ to support nearly 300 functions
Without SafetyPower™, you cannot drive an EV
To preventatively test the 12V battery in electric vehicles, you need diagnostics that assess the battery’s ability to support SafetyPower™ Capacity

HOW IT WORKS

Using the built in 500A load, xLVS-9000 analyzes the 12V Aux battery’s response while loading to accurately assess the remaining capacity of the battery and it’s ability to support critical vehicles systems.

WHAT IT MEASURES

Accurately estimates EV 12V Aux batteries’ remaining functional capacity.
Compares the functional capacity to the SafetyPower™ capacity requirements of the electric vehicle.
Identifies issues with 12V Aux batteries’ ability to support SafetyPower™ for critical vehicle loads.

Analytics and Communication

BMIS integration supports automated over-the-air software updates and analytical reporting
- Capture charge session times
- Review diagnostic charge data
- Visibility into process compliance
- Reporting on self-diagnostics to improve tool uptime
E-mail results via built-in Wi-Fi
Print results via networked Wi-Fi printer or optional integrated printer

APPLICATIONS

Electric Vehicle (EV) 12V Auxiliary batteries

SUPPORTED BATTERY TYPES

12V Auxiliary Batteries
Flooded Lead Acid
AGM

BATTERY RATINGS

CCA (optional)
AH
CA (optional)

DIAGNOSTIC TECHNOLOGY

SafetyPower Diagnostics™
Enhanced Battery Temperature
Cold Battery Diagnostic Charging

COMMUNICATION

Wi-Fi communications
- 2.4 GHz; 802.11 b, g, n
- Security – WEP, WP, WPA-2 Enterprise
- Serial
- Bluetooth
  - 2.0
  - USB 2.0 connection
  - BTLE
  - Serial CAN bus interface
