Midtroincs MDX-700 HD battery tester for trucks

MDX-700P HD

Heavy-Duty Battery & Electrical System Analyzer

Created specifically for the heavy-duty fleet market, the MDX-700 HD makes it easy to test the multiple battery systems and electrical system on heavy-duty vehicles, including trucks and commercial equipment.

  • Advanced heavy-duty battery testing algorithm provides accurate test results for multiple battery configurations up to 2000 CCA
  • Quickly identify issues with the battery, starting or charging system
  • User-friendly interface prompts the user through the entire test sequence
  • Heavy-duty clamps and a 15-foot cable set allows for starting and charging system tests to be run from the cab
  • Test results, including multiple battery tests, can be printed on an optional integrated printer

DOWNLOD
MDX-700 HD
PRODUCT MANUAL

DOWNLOAD
MDX-700 HD
BROCHURE

PLAY VIDEO

[metaslider id="6161"]

MDX-700 HD SELECTED FEATURES

  • In-vehicle capabilities for analyzing starting and charging systems
  • Complete system information in an easy-to-read format
  • Starter/ Alternator testing
  • Quick starter analysis without disabling the ignition
  • Advanced menu-driven interface for a complete charging system analysis in seconds
  • Battery pack testing

Battery Management Processes

Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:

Primary Uses

Service diagnostics icon

Service Diagnostics

Preventative maintenance icon

Preventative Maintenance

Applications

    • Group 31
    • Commercial 4D/8D
    • Automotive





Battery Ratings

  • CCA
  • MCA
  • EN
  • SAE
  • CA
  • JIS
  • DIN
  • IEC

Voltage Range

  • .9Vdc – 30Vdc

Cable Length

  • 15’/455cm (standard)

Languages

  • English
  • Spanish
  • French Canadian

Housing Material

  • Acid-resistant ABS plastic

Dimensions

  • MDX-700HD: 19.5cm x 10cm x 5cm (7.7” x 3.9” x 2.4”)
  • MDX-700PHD: 27cm x 10cm x 5cm (10.6” x 3.9” x 2.4”)

Weight

  • MDX-700 HD: 544g (1.2 lbs)
  • MDX-700P HD: 771g (1.7 lbs)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

MDX-700P HD

  • Includes tester with integrated printer, heavy-duty field-replaceable 15’ testing cables, lead stud adapters, printer paper, carrying bag

MDX-700 HD

  • Includes tester, heavy-duty field-replaceable 15’ testing cables, lead stud adapters, carrying bag

A033

  • Lead Stud Adapter Set

A087

  • IR Printer with Charger (for MDX-700HD)

A095

  • 6 pack, Thermal Printer Paper*
    *Replacement paper rolls available at most office supply stores

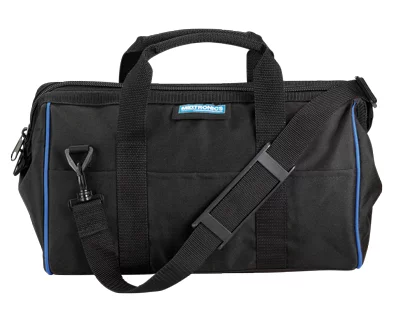

A156

  • Tool Bag Carrying Case

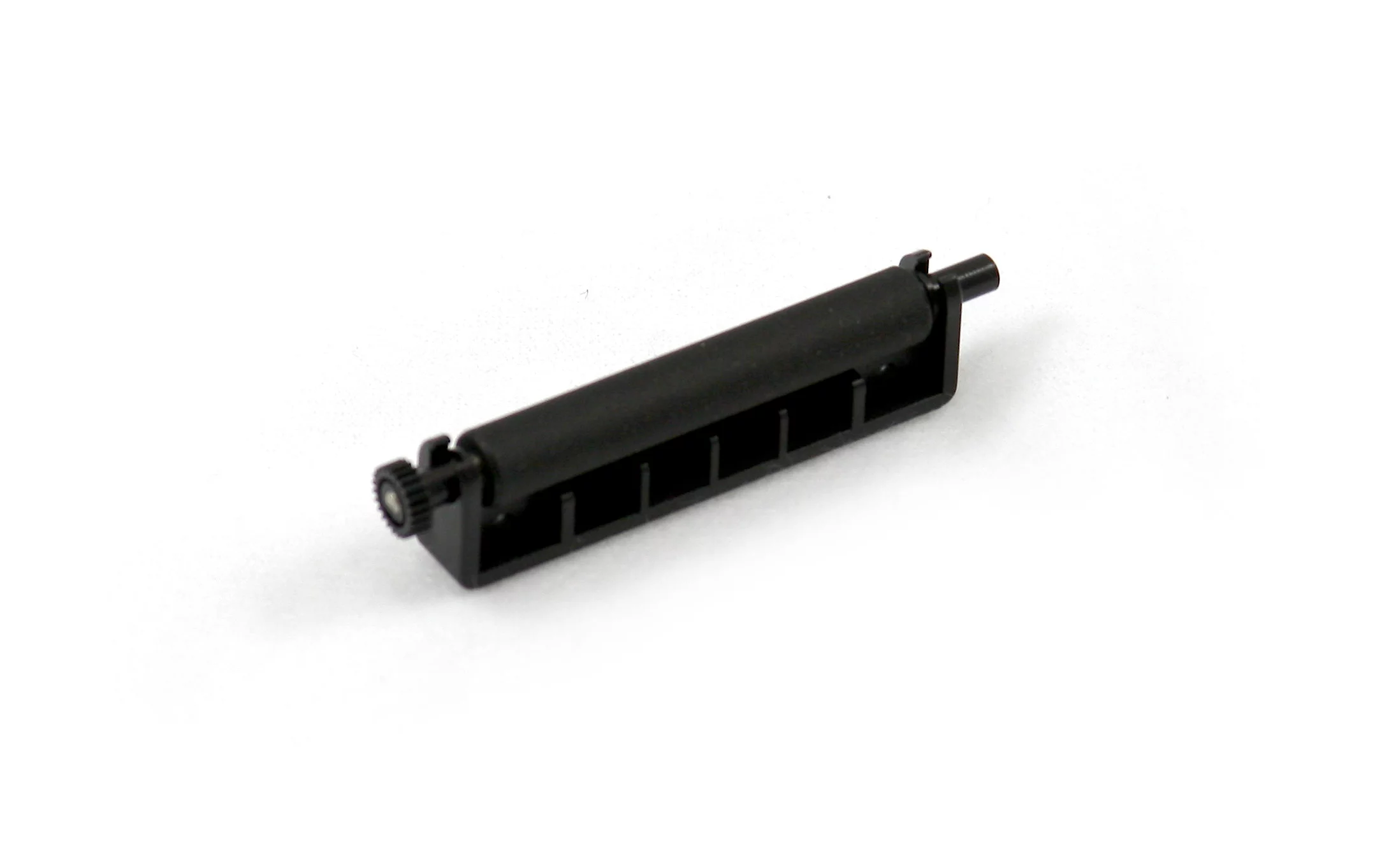

A224

  • Printer Roller Replacement

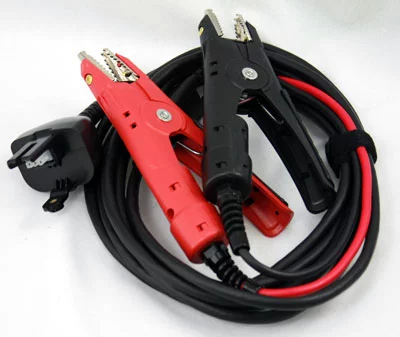

A260

  • Replacement 15’ Battery Test Cable
