GR8 Series

Battery and Electrical Diagnostic Station

GR8 Series Battery and Electrical Diagnostic Stations are all-in-one portable battery diagnostic stations that provide intelligent, controlled and rapid charging combined with battery state-of-health analysis.

  • Performs routine maintenance checks quickly, identifying batteries nearing the end of useful life before they fail
  • Recovers batteries quickly & reduces wasted time trying to charge bad batteries
  • Eliminates costly replacement of good batteries
  • Designed for maximum service flexibility with removable controller and quick-connect removable test and charging cables

DOWNLOAD
GR8 SERIES
PRODUCT MANUALS

DOWNLOAD
GR8 SERIES
BROCHURES

PLAY VIDEOS

  • Midtronics: Diagnostic Charging 101

GR8 SELECTED FEATURES

  • Diagnostic Charging Mode: Quickly and efficiently assesses the condition of the battery
  • Power Supply Mode: Maintains the battery state-of-charge during vehicle reflash programming and extensive service work
  • Jump-start Mode: 250-amp automated jump start routine
  • Manual Mode: User-defined charging parameters
  • Wireless Multi-tasking Bridge (GR8-1200 model): Allows users to charge one battery while diagnosing batteries and electrical systems on other vehicles

Battery Management Processes

Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:

Primary Uses

Service Diagnostics

Warranty Management

Applications

  • 12-volt batteries
  • 12- and 24-volt charging systems





Battery Test Cables

  • 10-ft quick connect removable cables with Kelvin clamps

Weight

  • 49.5 lbs

Charger Cables

  • 6-ft quick-connect removable cables with heavy-duty Kelvin charge clamps

Display

  • 128 x 64 pixel graphics, backlit display

Battery Test Range (12-volt batteries)

  • 100-3000 CCA 100-1000 A (DIN)
  • 100-3000 CA 100-3000 A (SAE)
  • 100-3000 MCA 100-1000 A (IEC)
  • JIS by Number 100-3000 A (EN)

Charging Voltage (12-volt batteries)

  • Up to 17 volts, 0.1V resolution

Charging Current

  • 0-60 amps, 1 amp resolution
  • 80 amps peak
  • 245 amps for cranking assistance (jump start)

Temperature Measurement

  • Controller IR Sensor: -20 – 200 F
  • Charger Clamp Sensor: -20 – 200F

Power Inputs (Charger)

  • 110V, 60 Hz, 15-amp dedicated circuit

Languages

  • English
  • Spanish
  • French Canadian

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

GR8-1100

  • Includes GR8 diagnostic charger with built-in cart, removable controller, 6-ft charging cables, 10-ft test cables, lead stud adapters

GR8-1200 AMP

  • Includes GR8 diagnostic charger with built-in cart, removable controller, wireless multi-tasking unit , two serial cables, 6-ft charging cables, 10-ft test cables, amp clamp, lead stud adapters

GR8-1200 AMP KIT

  • GR8-1200 amp with integrated printer

GR8-1202 AMP KIT

  • Includes GR8 diagnostic charger with built-in cart, removable controller with integrated printer, wireless multi-tasking unit , two serial cables, 6-ft charging cables, 10-ft test cables, amp clamp, lead stud adapters

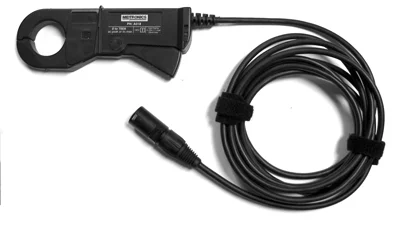

A018

  • Inductive Amp Clamp

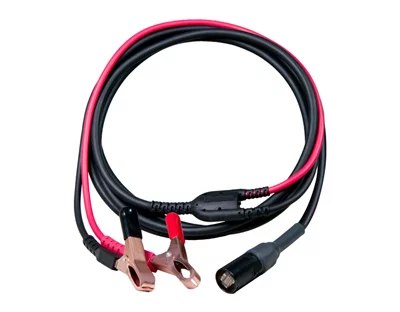

A028

  • DMM leads, 10’ Cable Assembly with Clamps

A033

  • Stud Adapter Set

A095

  • 6 pack, Thermal Printer Paper* *Replacement paper rolls available at most office supply stores

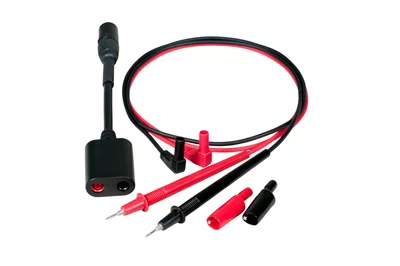

A126

  • DMM Adapter & Probe Kit

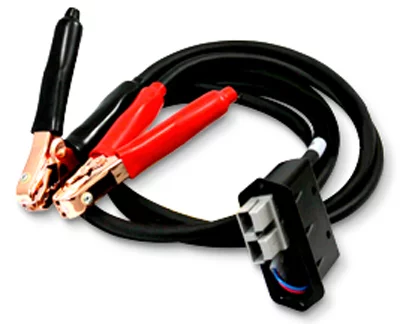

A129

  • Replacement Charger Cable Set

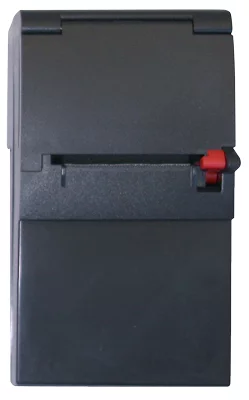

A141

  • Integrated Printer

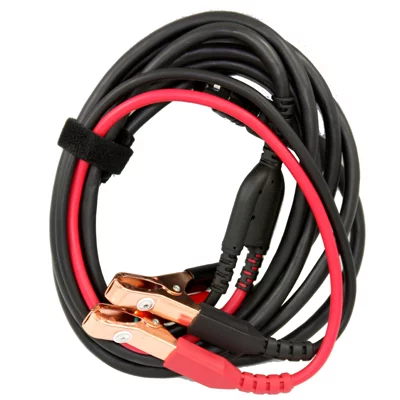

A152

  • 10’ Replacement Battery/Starting/ChargingSystem test cables
