xPD

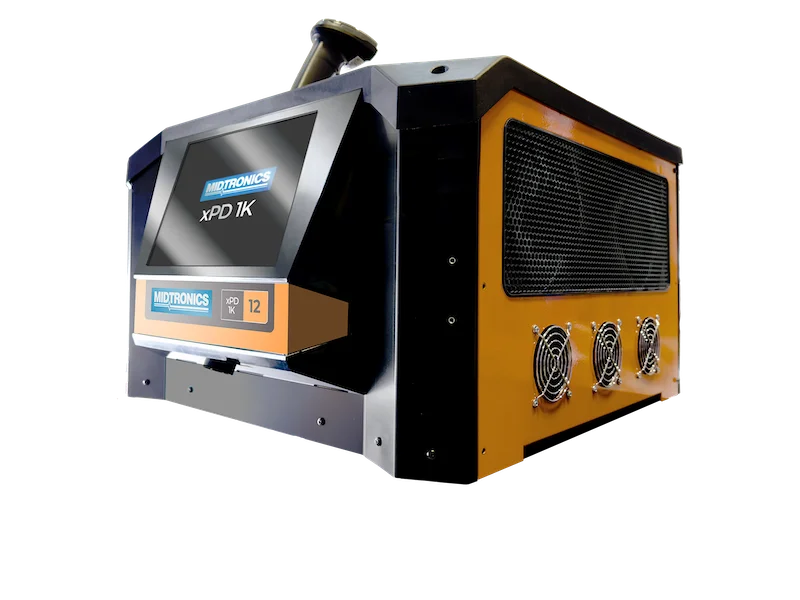

xPD-1000

High-Voltage Pack Service Tool

The high voltage batteries for electric vehicles are continually evolving, pushing voltage and capacities higher. Midtronics new xPD-1K is a flexible platform with capabilities to meet both today and future battery specifications. The selectable capabilities and power levels give you the right tool for all of the jobs to be done around pack service.​

  • xPD-1K provides safe, efficient discharge of your HV packs with pack control and monitoring to simplify your operation
  • Aftersales service, engineering, warranty, quality, remanufacturing, and parts teams are able to seamlessly track and trace pack level diagnostics and services performed by service location, provider, vehicle ID, and pack ID

xPD-1000 SELECTED FEATURES



  • Pack Discharge – Needed for shipping, accident, or end of pack life

  • Service Verification – Increase efficiency by verifying pack operation prior to replacement in vehicle

  • Pack SOH – Measure pack capacity for evaluation

  • Continuous monitoring of pack parameters

  • Programmed thresholds keep pack within

  • Android interface with on-screen prompts to perform service with minimal input

  • Two power-level variants to match your facility’s power infrastructure and the job requirements

    ​

Battery Management Processes

Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:

Primary Uses

Condition-based maintenance icon

EV Safety Inspection

Warranty management icon

Warranty Management

Preventative maintenance icon

Preventative Maintenance

Service diagnostics icon

Service Diagnostics

Secondary Uses

Pre-delivery inspection icon

Pre-Delivery Inspection

Vehicle arrival inspection icon

Electric Vehicle Arrival Inspection

Lot management icon

Lot Management

BENEFITS

  • Functionality tailored to unique service strategies

  • Safely lower SOC for repair, transport, 2nd Life, and recycling.

  • Supports discharge time for high-capacity packs

  • Power spec options to hit discharge time targets

  • Simplifies service via auto-recognition of required communication protocol

  • Always current SW/FW

Analytics and Communication

  • BMIS integration supports automated over-the-air software updates and analytical reporting
    • Capture charge session times
    • Review diagnostic charge data
    • Visibility into process compliance
    • Reporting on self-diagnostics to improve tool uptime
  • E-mail results via built-in Wi-Fi
  • Print results via networked Wi-Fi printer or optional integrated printer
