CELLTRON MAX

Versatile Battery Analysis System

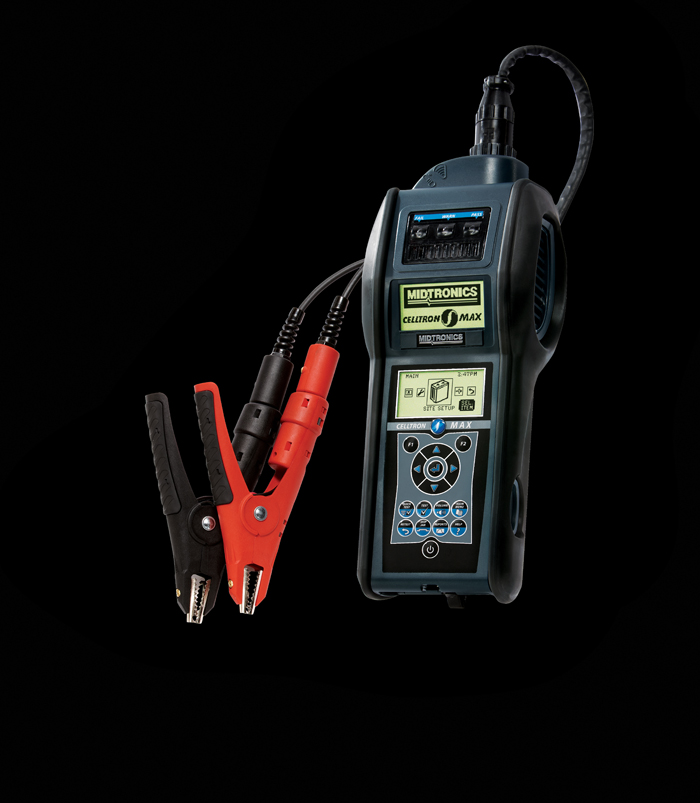

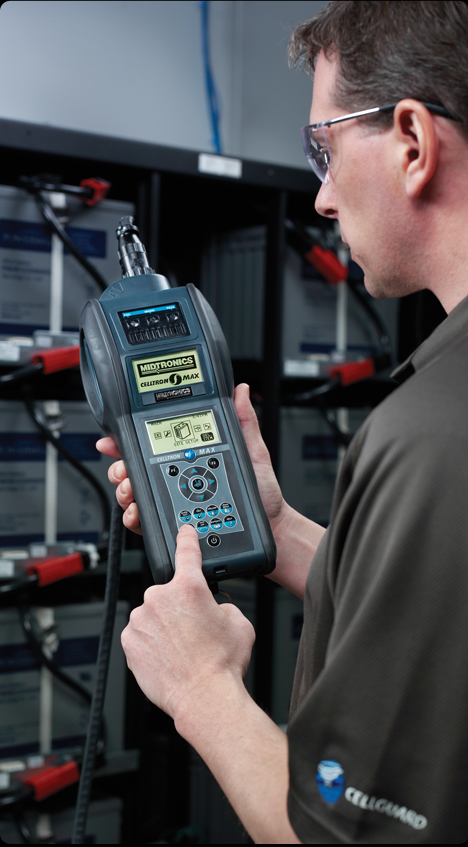

The first Stationary Battery Analyzer with specialized battery and system diagnostic algorithms for enhanced system reliability and technician efficiency, CELLTRON MAX is the next generation of stationary battery management. Built on years of proven Conductance Technology and field expertise combined with state-of-the-art analysis technology, the CELLTRON MAX fully integrates with Midtronics CELLTRAQ Enterprise Asset Management System. Use of the CELLTRON MAX system ensures reliability of critical power backup equipment in Uninterruptible Power Supply (UPS), telecommunications and other stationary power applications. The CELLTRON MAX measures, trends and analyzes key battery and system parameters, alerting technicians to abnormalities before costly problems occur.

The CELLTRON MAX features an enhanced dual screen interface for simplified setup and use. With multiple data storage and movement options, results can easily be saved for future reference. Temperature, a key battery health parameter, is automatically captured from the integrated sensor for improved analysis accuracy. Quick Keys provide fast access to primary functions. New features like the ability to test without reference value and technician guidance for setup and results analysis make the CELLTRON MAX a truly intuitive tool. The first patented multi-frequency battery specific analysis device, the CELLTRON MAX tests individual lead acid cells or monoblocs (up to 16 Volts) in any common configuration. Increase maintenance efficiency and maximize battery asset utilization all while ensuring power system integrity.

Integrated site trending for highest accuracy in battery state-of-health analysis
Full compatibility with Midtronics CELLTRAQ Enterprise Battery Asset Management System for simple, efficient data tracking, reporting and decision making
Midtronics advanced data analysis algorithms for state of health indication and recommendation
Integrated battery temperature measurement
Starting / cranking battery test capability along with traditional stationary battery testing

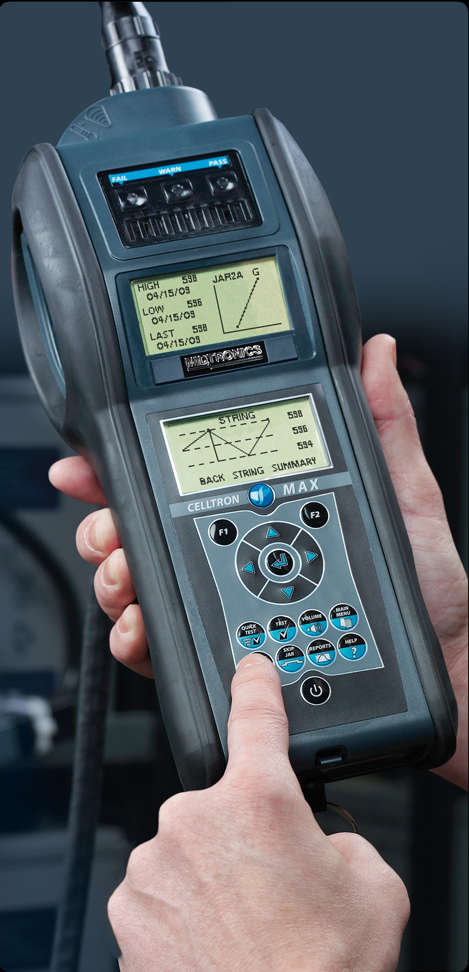

Dual screens for simplified setup and technician interface
Integrated data storage with USB connectivity

Midtronics battery testers, analyzers and battery data management software make compliance with the new NERC standard PRC-005-2 quick and easy.

CELLTRON MAX

Specifications

Model Number: CMA-7000

Applications: Tests individual lead acid cells or monoblocs (up to 16 Volts) in any common configuration, approximately 10-6000 Ah

Voltage: 1.5 - 20.0 Volts DC

Conductance: 100 - 19,990 Siemens

Test Data Storage: 500 string locations of 480 test results stored internally

Accuracy: + 2% across test range

Voltmeter Resolution: 5 mV User Programmable Functions: Preset values for over 250 battery types Low voltage alarm setting Low conductance warning Low conductance failure Test mode (push button/auto start)

Calibration: Auto-calibration prior to every test, no future calibration required Connectorized Test

Cable Options: Dual contact clamps Dual contact probes Custom cables by quotation

Power Requirements: 7.2V, 2500AH, NiMH Internal swappable battery & charger

Displays: LCD - FSTN 2.619 in x 1.309 in, 128 x 64 pixels, 40 degree viewing angle, contrast ratio 8, Green LED backlight

Keypad: Stainless-steel dome, polycarbonate overlay, 1,000,000 actuations

Data Transfer: USB, Infra-red, half-duplex IRDA protocol

Environmental Operating Range: 0 to +40C, 95% relative humidity, non-condensing

Storage Temperature: -20 to 82C

Over Voltage Protection: Auto-reset disconnect Reverse polarity protected

Housing Material: Acid resistant ABS plastic santoprene overmold

Analyzer Dimensions: 11 in x 4 in x 3 in 280 mm x 105 mm x 80 mm

Case Dimensions: 19 in x 15.5 in x 7 in 485 mm x 395 mm x 180 mm
