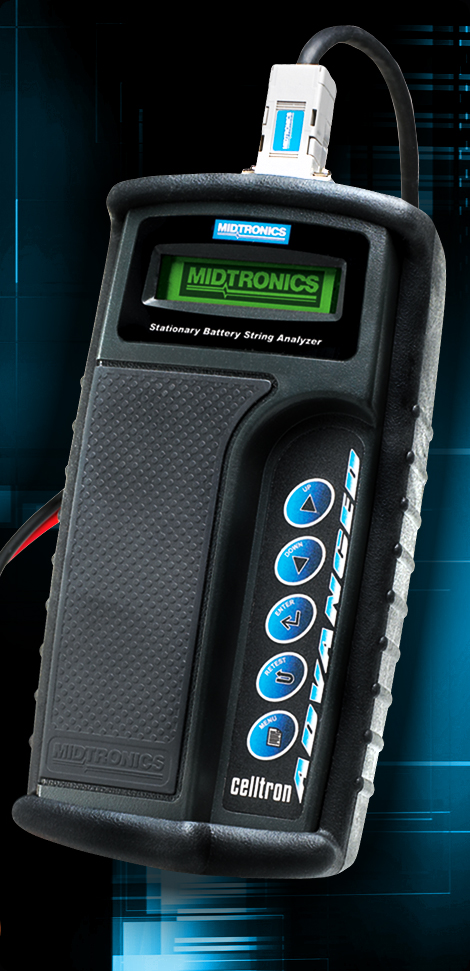

CELLTRON ADVANCED (CTA-2000)
Model Number: CTA-2000
Warranty: Midtronics standard one-year warranty
Applications:
- Telecommunications (Central office and outside plant)
- Power utility (generation, transmission and distribution) switching and station batteries
- Uninterruptible Power Supply maintenance
- Other professional stationary battery service
Conductance Range: 100-19,900 Mhos/Siemens
Battery Capacity Range: 10 Ah to 4000 Ah approx.
Power Requirements: One 9 volt high capacity/heavy duty lithium battery required (included), powered by battery under test for some test operations
Voltage Range: 1.0-15.0 Volts DC
Display: Enhanced backlit graphical LCD with resolution control for varying light environments
Operating Temperature: 0 to +40 degree C, 95% relative humidity, non-condensing
Interface Operations:
- Dura probes
- Dura clamps
- Standard clamps
- Mini-probes
- End-of-Train device cable
- Others, including customs available
Housing Material: Acid and impact resistant ABS plastic
Product Dimensions: L9" X 4" X 2.5" (230 mm X 102 mm X 65 mm)
Product Weight: 1 lb / 427 grams
Over Voltage Protection: Fused protection to 60-volts DC
Test Data Storage: 16 strings of 480 tests
Temperature Compensation: Automatic adjustments on temp input
Calibration: Auto calibration prior to every test, no future calibration required
